Place of Origin:
Hebei, China
Brand Name:
FX
Certification:
iso-9001

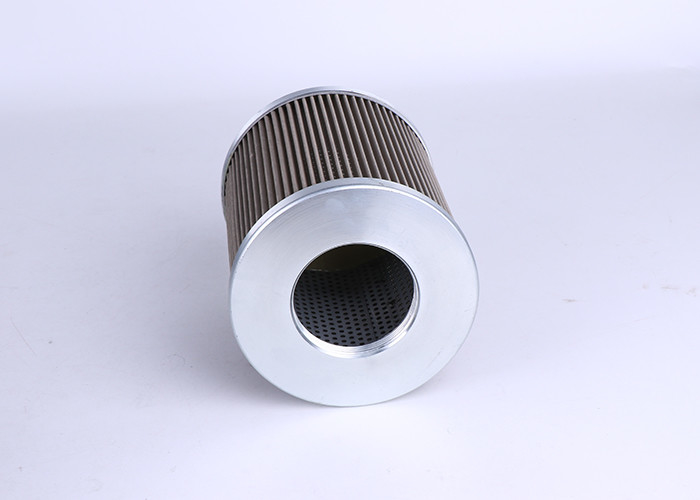

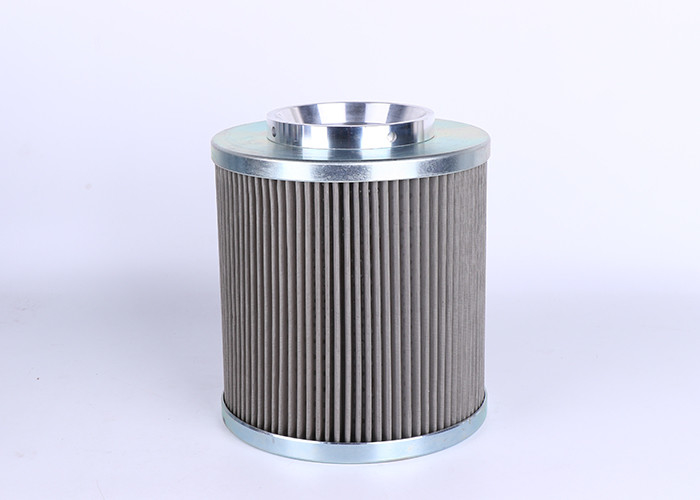

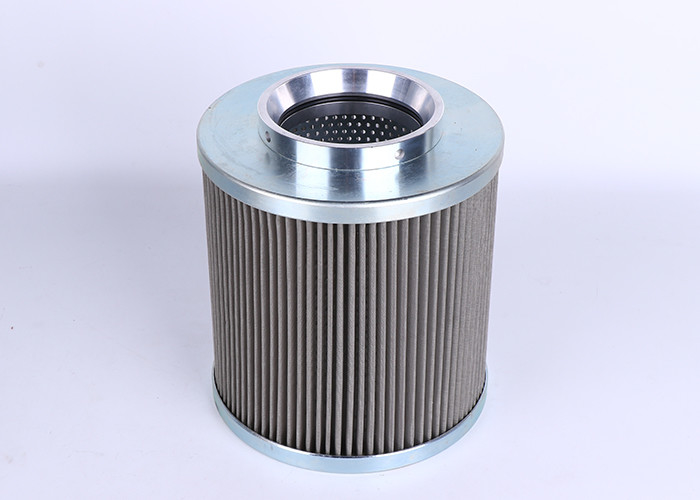

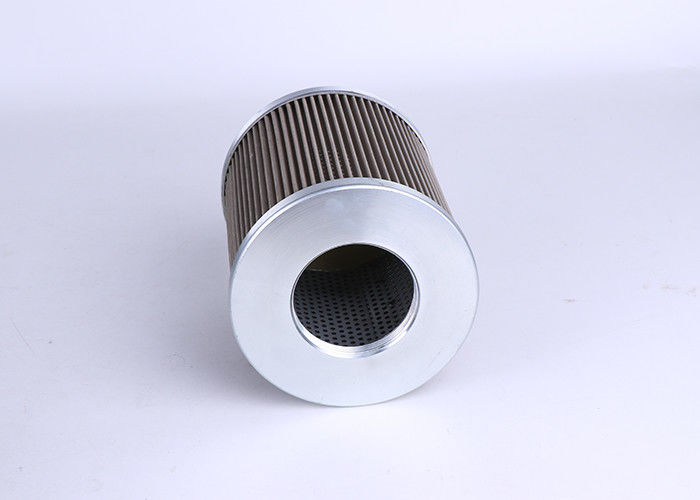

Industrial hydraulic filter micro oil filter oil filter element
Introduction
Pressure pipeline filter: the filter installed in the pressure oil circuit is mainly used to protect the hydraulic components downstream of the pump.
As the main filter of the system, its filtering accuracy shall meet the requirements of the system for oil cleanliness.
The pressure difference of pressure oil filter is not very strict, so high precision filter can be selected.
The maximum allowable pressure difference is generally 0.35-0.5mpa, and the initial pressure difference is 0.07-0.14mpa.
The strength of the pressure oil filter should be able to withstand the maximum working pressure of the system, frequent pressure changes and pressure peaks.
Features
1) High flow rate, high precision
2) High porosity, permeability, and very low pressure drop
3) Excellent mechanical strength, withstand high pressure up to 200Kg
4) Easy to clean, reverse pulse
5) Corrosion and high temperature resistance
6) Good processing performance, folding, welding, bonding
7) Design flexibility
| Product: | Hydraulic Oil Filter |
| Nominal filtration rating: | 0.01μ ~ 1000μ |
| Operating pressure: | 21bar-210bar (Hydraulic Liquid Filtration) |
| O-ring material: | Vition, NBR |
| Material | glass fiber |
| Type | Folding filter |
| efficient: | 99.99% |
| Core components: | Engine, pump |
Our advantage
We design filtration products and provide filtration solutions for different fields. We provide OEM products for some distributors, which can be specially marked on the products. Solve some special problems for customers. We provide customized products based on specifications, sizes, filter materials, applications, filter grades, etc. Available. We have very strict inspections of material procurement, production process, packaging and transportation. Special packaging for different products to prevent damage during transportation.
